 Enable Numeric signal/wifi strength (no jailbreak needed!)
Unread 06-16-2012, 01:50 PM   #1
cooldayr
Obsessive iPhone Disorder

cooldayr's Avatar

cooldayr is offline
Join Date: Jun 2011
Device: iPhone 5S
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: T-Mobile
OS: Hackintosh
Location: Connecticut
Posts: 2,527
Thanks: 62
Thanked 1,673 Times in 885 Posts
Enable Numeric signal/wifi strength (no jailbreak needed!)

Ok so for starters you will need a program called iBackupBot on your computer
Here is the link: iBackupBot - iTunes Backup Manager for iPhone, iPod Touch, iPad

So this mod will change signal bars and/or Wifi bars to a numeric value
For cell signal this value will range from -47 (the best service) to -130 (the worst service), The actual bar value for bars will vary from carrier to carrier.
For Wifi it will range from 0 (perfect connection) to -100 (weak as possible)

Step 1: Back up your phone to your computer (if you use iCloud then just turn of iCloud backup and sync)
Step 2: Open iBackupBot and find your backup (there may be a lot)
Step 3: Find the file called Library/Preferences/com.apple.springboard.plist
Step 4: open the file

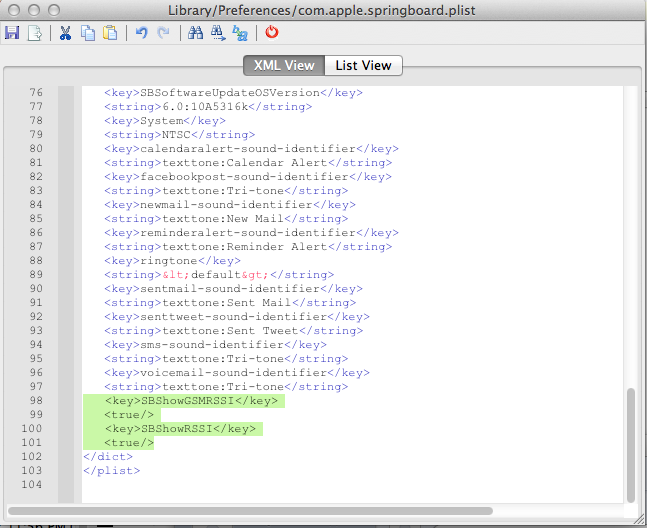

Step 5: Look at the image below, for numeric signal add the SBShowGSMRSSI line with the true value and for Wifi add the SBShowRSSI line and the true value

Step 6: Save the file
Step 7: Press the little iPhone with an arrow in iBackupBot to restore your phnoe from a back up
Step 8: Enjoy!

To switch between the analog bars and the numeric values just tap them!
  Reply With Quote
The Following 4 Users Say Thank You to cooldayr For This Useful Post:
E1-SUNZ (09-22-2013), JLick (06-17-2012), joecef (06-16-2012), joshob1987 (09-18-2013)


Unread 06-17-2012, 04:01 PM   #2
nba09king
n00b

nba09king is offline
Join Date: Dec 2010
Device: iPod Touch 4
iOS Version: 5.1.1
iTunes Version: iTunes 10
Carrier: Other
OS: Windows 7
Location: Ny
Posts: 20
Thanks: 1
Thanked 10 Times in 6 Posts
Thanks for the tweak but its much easier to use sbsettings and toggle the numerical wifi on
with the same effect.
  Reply With Quote


Unread 06-17-2012, 04:39 PM   #3
Ryashon
Narcissistic Cannibal

Ryashon's Avatar

Ryashon is offline
Join Date: Aug 2010
Device: iPhone 5S
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: AT&T
OS: Windows 8 x64
Location: Oregon
Posts: 168
Thanks: 56
Thanked 64 Times in 35 Posts
Quote:
Originally Posted by nba09king View Post
Thanks for the tweak but its much easier to use sbsettings and toggle the numerical wifi on
with the same effect.
How're you gonna do that with out a jailbreak? I'm pretty sure you can't use sbsettings without your phone being jailbroken. This method is for someone without a jailbreak.
  Reply With Quote


Unread 06-17-2012, 04:47 PM   #4
cooldayr
Obsessive iPhone Disorder

cooldayr's Avatar

cooldayr is offline
Join Date: Jun 2011
Device: iPhone 5S
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: T-Mobile
OS: Hackintosh
Location: Connecticut
Posts: 2,527
Thanks: 62
Thanked 1,673 Times in 885 Posts
Quote:
Originally Posted by nba09king View Post
Thanks for the tweak but its much easier to use sbsettings and toggle the numerical wifi on
with the same effect.
True but this is a non-jailbreak method
Also SBsettings consumes a shit ton of RAM

For those users who care about a shit ton of RAM and want their device to run smooth then this is the way to go!
  Reply With Quote
The Following User Says Thank You to cooldayr For This Useful Post:
x73x (09-05-2012)


Unread 09-05-2012, 03:25 PM   #5
bojonson
n00b

bojonson is offline
Join Date: Sep 2012
Device: iPhone 3GS
iOS Version: 4.3.x
iTunes Version: iTunes 10
Carrier: Other
OS: Mac OS X
Location: CO
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Looks just like what I was looking for!
But I'm guessing (as a novice) that my 3GS with iOS 4.3.2 is NOT capable of this work around.
I downloaded iBackupBot but haven't played with it yet (I didn't buy, so I only have 7 days).

I hesitate to jailbreak the phone, since I really don't have time to muck around if I make a mistake.
If this solution won't work for me, can you point me to your favorite step-by-step tutorial on JB?
Should I upgrade to 5.1.1 first?

Any SIMPLE wifi signal strength (RSSI) solution is all I'm trying to accomplish. Suggestions?

Last edited by bojonson; 09-05-2012 at 03:30 PM. Reason: added question
  Reply With Quote


Unread 09-05-2012, 04:34 PM   #6
x73x
Obsessive iPhone Disorder

x73x is offline
Join Date: Dec 2010
Device: Other
iOS Version: 3.1.2
iTunes Version: iTunes 7
Carrier: Other
OS: Other
Location: ㅤ
Posts: 2,695
Thanks: 2,854
Thanked 2,237 Times in 1,169 Posts
Quote:
Originally Posted by bojonson View Post
Looks just like what I was looking for!
But I'm guessing (as a novice) that my 3GS with iOS 4.3.2 is NOT capable of this work around.
I downloaded iBackupBot but haven't played with it yet (I didn't buy, so I only have 7 days).

I hesitate to jailbreak the phone, since I really don't have time to muck around if I make a mistake.
If this solution won't work for me, can you point me to your favorite step-by-step tutorial on JB?
Should I upgrade to 5.1.1 first?

Any SIMPLE wifi signal strength (RSSI) solution is all I'm trying to accomplish. Suggestions?
I suggest trying OPs tutorial and see if you can even do it or not before upgrading.
  Reply With Quote


Unread 09-05-2012, 08:49 PM   #7
bojonson
n00b

bojonson is offline
Join Date: Sep 2012
Device: iPhone 3GS
iOS Version: 4.3.x
iTunes Version: iTunes 10
Carrier: Other
OS: Mac OS X
Location: CO
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks. By 'OPs tutorial' I assume you mean cooldayr's post at the beginning of THIS THREAD?

I opened iBackupBot & opened the (only) backup I had for my iPhone.
I found ~/Library/Preferences/com.apple.springboard.plist and used the editor to add the last 4 lines (exactly as highlighted above). Then
Saved the changes using the 'floppy' icon (leftmost) in the editor window.

At this point I'm unclear on cooldayr's steps 6 & 7. I don't see his 'little iPhone with an arrow' but also don't have the phone connected. Am I supposed to plug it in & do a Restore from WITHIN the editor? I tried closing the editor after saving, but when I looked at the 'Backup' listed in the iBackupBot list, it didn't show the changes to the plist(?) Did the changes get exported to the 'Backup' on my MacBook [~Library/Application Support/Mobile Sync/Backup/folder]?

It looks like that folder was 'modified' about the time I saved the plist. I'm just not clear if I needed to export the edited plist... or if I do the restore from within iBackupBot???

Thanks for any help to a n00b!
  Reply With Quote


Unread 09-05-2012, 09:22 PM   #8
x73x
Obsessive iPhone Disorder

x73x is offline
Join Date: Dec 2010
Device: Other
iOS Version: 3.1.2
iTunes Version: iTunes 7
Carrier: Other
OS: Other
Location: ㅤ
Posts: 2,695
Thanks: 2,854
Thanked 2,237 Times in 1,169 Posts
Quote:
Originally Posted by bojonson View Post
Thanks. By 'OPs tutorial' I assume you mean cooldayr's post at the beginning of THIS THREAD?

I opened iBackupBot & opened the (only) backup I had for my iPhone.
I found ~/Library/Preferences/com.apple.springboard.plist and used the editor to add the last 4 lines (exactly as highlighted above). Then
Saved the changes using the 'floppy' icon (leftmost) in the editor window.

At this point I'm unclear on cooldayr's steps 6 & 7. I don't see his 'little iPhone with an arrow' but also don't have the phone connected. Am I supposed to plug it in & do a Restore from WITHIN the editor? I tried closing the editor after saving, but when I looked at the 'Backup' listed in the iBackupBot list, it didn't show the changes to the plist(?) Did the changes get exported to the 'Backup' on my MacBook [~Library/Application Support/Mobile Sync/Backup/folder]?

It looks like that folder was 'modified' about the time I saved the plist. I'm just not clear if I needed to export the edited plist... or if I do the restore from within iBackupBot???

Thanks for any help to a n00b!
I've used this program once before. Basically just open the file add the lines and save it (floppy) then restore to the modified backup.

Step 6 means to save it (floppy) and step 7 means to push the button on the left of
the question mark, see below:



You restore in the program it's kind of strange but it works without jailbreak.

I did it long ago on my iPad 2 when I couldn't jailbreak it. I enabled the multitasking gestures back on iOS 4 but now I'm jailbroke on iOS 5.0.1 so

Last edited by x73x; 09-05-2012 at 09:30 PM.
  Reply With Quote


Unread 09-05-2012, 09:30 PM   #9
bojonson
n00b

bojonson is offline
Join Date: Sep 2012
Device: iPhone 3GS
iOS Version: 4.3.x
iTunes Version: iTunes 10
Carrier: Other
OS: Mac OS X
Location: CO
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
OK... so having nothing but time to lose, I went ahead & made the ass-umption that the SW did what it was supposed to. With iTunes CLOSED, I plugged in the iPhone (no change to iBackupBot) and then did a restore from iTunes. It worked fine... just as advertised!

I have to confess that I COMPLETELY missed the 'little iPhone with an arrow' on the first go round.... feel like a dumbass. Good to know that you can do a restore from either iTunes or iBB.

---------- EDIT ----------

Thanks! I appreciate the reply, Ben. Quick question- you said you used this SW once before, but did you buy it?
  Reply With Quote


Unread 09-05-2012, 09:55 PM   #10
x73x
Obsessive iPhone Disorder

x73x is offline
Join Date: Dec 2010
Device: Other
iOS Version: 3.1.2
iTunes Version: iTunes 7
Carrier: Other
OS: Other
Location: ㅤ
Posts: 2,695
Thanks: 2,854
Thanked 2,237 Times in 1,169 Posts
Quote:
Originally Posted by bojonson View Post
OK... so having nothing but time to lose, I went ahead & made the ass-umption that the SW did what it was supposed to. With iTunes CLOSED, I plugged in the iPhone (no change to iBackupBot) and then did a restore from iTunes. It worked fine... just as advertised!

I have to confess that I COMPLETELY missed the 'little iPhone with an arrow' on the first go round.... feel like a dumbass. Good to know that you can do a restore from either iTunes or iBB.

---------- EDIT ----------

Thanks! I appreciate the reply, Ben. Quick question- you said you used this SW once before, but did you buy it?
Who's Ben? and no I didn't buy it
  Reply With Quote


Unread 09-06-2012, 12:02 AM   #11
bianchin69
Rockin my Jailbroken i5

bianchin69's Avatar

bianchin69 is offline
Join Date: Mar 2011
Device: iPhone 5
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: Other
OS: Mac OS X
Location: Australia mate
Posts: 3,302
Thanks: 1,472
Thanked 1,398 Times in 949 Posts
Ben

Catch a man a fish and he will eat for a day.Teach a man to fish and he will eat for ever.
[GUIDE]/How to fix Safemode Loop and 90% of Problems - SiNfuL iPhone

If I or anyone else have helped you ...
  Reply With Quote


Unread 09-06-2012, 12:13 AM   #12
x73x
Obsessive iPhone Disorder

x73x is offline
Join Date: Dec 2010
Device: Other
iOS Version: 3.1.2
iTunes Version: iTunes 7
Carrier: Other
OS: Other
Location: ㅤ
Posts: 2,695
Thanks: 2,854
Thanked 2,237 Times in 1,169 Posts
Quote:
Originally Posted by bianchin69 View Post
Ben
But I'm Kevin
  Reply With Quote


Unread 09-06-2012, 12:17 AM   #13
bianchin69
Rockin my Jailbroken i5

bianchin69's Avatar

bianchin69 is offline
Join Date: Mar 2011
Device: iPhone 5
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: Other
OS: Mac OS X
Location: Australia mate
Posts: 3,302
Thanks: 1,472
Thanked 1,398 Times in 949 Posts

Catch a man a fish and he will eat for a day.Teach a man to fish and he will eat for ever.
[GUIDE]/How to fix Safemode Loop and 90% of Problems - SiNfuL iPhone

If I or anyone else have helped you ...
  Reply With Quote
The Following User Says Thank You to bianchin69 For This Useful Post:
x73x (09-06-2012)


Unread 12-01-2012, 08:17 PM   #14
Sinned_Elmeerrr
If you like it, buy it.

Sinned_Elmeerrr's Avatar

Sinned_Elmeerrr is offline
Join Date: Mar 2011
Device: iPhone 5S
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: T-Mobile
OS: Mac OS X
Location: California
Posts: 369
Thanks: 200
Thanked 637 Times in 128 Posts
Doesn't seem to work on iOS 6.0.1
If I've helped you in any way, and you don't hit the Thanks button, you're an ass because that's the least you can do for me.


iPhone 5s {Jailbroken & Unlocked} iOS 7.0.6
iPhone 4 {Jailbroken & Unlocked} iOS 7.0.6
iPhone 4S {Jailbroken & Unlocked} 7.0.6
iPad Mini {Jailbroken} 7.0.6
iPad 4 {Jailbroken} iOS 7.0.6
Apple TV 3 {Jailed}
iPad Air iOS {Jailbroken} 7.0.6

Don't be afraid to fight against your tyrannical government, show them who they should fear here
  Reply With Quote


Unread 09-18-2013, 10:25 PM   #15
joshob1987
n00b

joshob1987 is offline
Join Date: Jan 2013
Device: iPod Touch 5
iOS Version: 7.0
iTunes Version: iTunes 11
Carrier: Other
OS: Windows 7
Location: Washington
Posts: 11
Thanks: 6
Thanked 2 Times in 2 Posts
Thank you. I wanted to do this without using sbsettings as it takes too much ram. iFile works just as well to edit the plist which is what I did (My device is already jailbroken though).
  Reply With Quote
